"Packing up Performance"

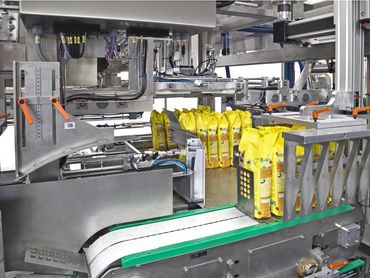

The DIENST horizontal cartoning system is a top-of-the-range model that automates the process of filling and closing pre-glued folding cartons while meeting the highest demands in terms of format variety, short set-up times and reliable machine availability.

The design of the horizontal cartoner allows high cycle rates while handling the products gently.

In the process sequence, the dimensionally stable or flexible products are fed from an adjustable cassette conveyor parallel to the folding carton transport and are cartoned by insertion systems. The filled cartons are sealed with hot glue or a tuck-in closure and coded if required.

• Gentle on materials thanks to individual movement profiles of the servo drives with overload function, adapted to the respective format.
• Permanent fault monitoring with sensitive disengagement of the sliders in the event of overload
• Airtight welding for the highest hygiene standards
• Simple and reproducible machine settings by saving the setting values
• Optional automatic format change
• Intuitive user interface with self-explanatory display and visualization of the function sequence
• Permanent data storage of all servomotors with trend analysis to prevent production downtimes

Fully automated format changeover of the system, changeover time less than 2 minutes.

Enlargement of the magazine for increased cutting capacity, extended autonomy.

Multiple magazines for fast product changeovers.

Packaging material and product-related control, shunting and infeed devices.

Extended sensor system for comprehensive quality control.

Ejection station for detected faulty packs to avoid production downtimes.

Network-compatible production monitoring including integration of third-party machines into the process chain.

Extended corrosion protection according to climatic requirements.

Equipment for remote maintenance, remote diagnostics, predictive maintenance and visual monitoring.

Equipped with various coding systems.

Multi-zone lighting for fast and localized fault detection.

Manual or fully automated carton filling.

Every business has unique packaging needs, and at Dienst, we specialize in providing custom machinery solutions tailored to your specifications. Our expert team will work with you to design and build machinery that optimizes your workflow and enhances productivity.

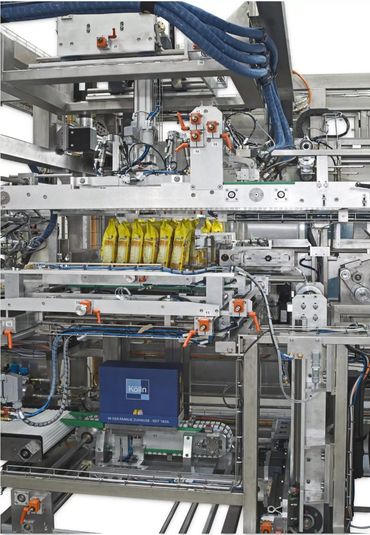

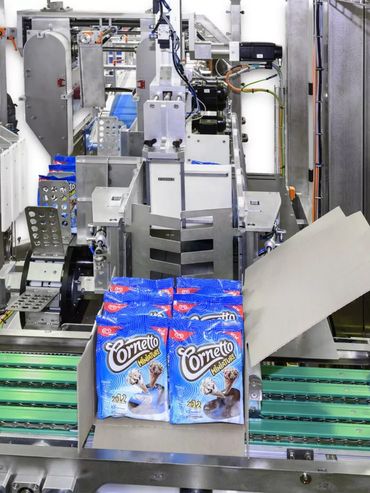

DIENST Top Load solutions are designed for the process of erecting, filling and closing trays and boxes of different packaging material qualities and shapes.

In the erector, the blanks are pulled out of the magazine by a swivel arm, transported to the erecting head, where they are formed into the desired shape and fed to the filling position as a box.

Folding cartons are filled manually, continuously or by fully automated robots. The modularized system allows for subsequent extensions.

The closing systems are designed for continuous sealing of adhesive and push-in closures, as well as coding.

• All DIENST models are suitable as standalone machines or as integrated components within a packaging line.
• Simple and reproducible machine changeover by saving the setting values
• Airtight welding for the highest hygiene standards
• Intuitive user interface with self-explanatory display and visualization of the function sequence
• Material protection thanks to servo drive movement profile adapted to each format
• Permanent data storage of all servomotors with trend analysis to prevent production downtimes

Fully automated format changeover of the system, changeover time less than 2 minutes.

System configuration with up to 3 erecting heads.

Variable format tools to minimize change parts.

Format tools for processing special shapes.

Enlargement of the magazine for increased cutting capacity, extended autonomy.

Ejection station for detected faulty packs to avoid production downtimes.

Advanced sensor technology for comprehensive quality control.

Extended corrosion protection according to climatic requirements.

Equipped with various coding systems.

Network-compatible production monitoring including integration of third-party machines into the process chain.

Setup for remote maintenance, remote diagnostics, predictive maintenance and visual monitoring.

Two-stage formats, incl. format inlay possible in one process step.

Manual or fully automated carton filling.

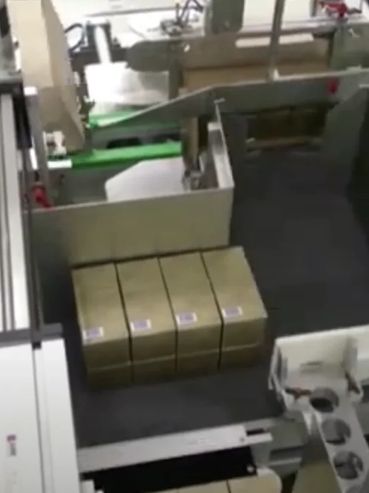

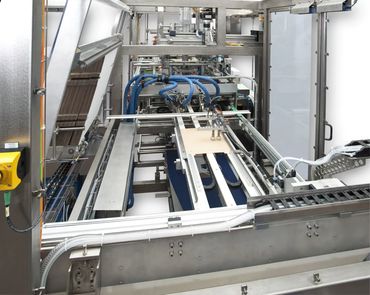

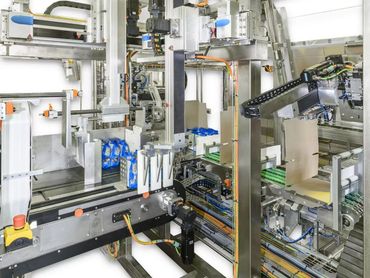

 The DIENST end-of-line solutions can process all common carton types, such as American case, wrap-around carton, tray with or without lid, etc. The entire packaging process of the DIENST end-of-line packaging system is designed as a fully automatic solution. The products are put together to form the desired packaging unit and inserted into the machine-opened cartons. Once the packaging units have been inserted, the outer cartons are closed and coded if required.

• All DIENST models are suitable as stand-alone machines or as integrated components within a packaging line
• Simple and reproducible machine settings by saving the setting values
• Intuitive user interface with self-explanatory display and visualization of the function sequence
• Material protection thanks to servo drive movement profile adapted to each format
• Airtight welding for the highest hygiene standards
• Permanent data storage of all servomotors with trend analysis to prevent production downtimes.

Do you have a specific machinery need that is not currently met by our product line? Our custom machinery design team can work with you to create a custom solution that meets your unique requirements.

 Discover our innovative range of solutions designed to revolutionize your manufacturing processes. Optimize your production and increase efficiency with our advanced options.

Robust cold glue protection of the packaging as additional protection for worldwide shipping.

Fully automated format changeover of the system, changeover time less than 2 minutes.

Enlarged magazine for increased cutting capacity, extended autonomy.

Extended sensor system for comprehensive quality control.

Individual selection of suitable grouping devices.

Extended corrosion protection according to climatic requirements.

Extended conveyor and transport systems.

Equipped with various coding systems.

Network-compatible production monitoring incl. integration of third-party machines into the process chain.

Equipment for remote maintenance, remote diagnostics, predictive maintenance and visual monitoring.We offer competitive pricing on all of our machinery and services. We believe that high-quality machinery should be accessible to everyone and strive to make our products and services affordable.

Below are various case styles on our case packers
